Product Information

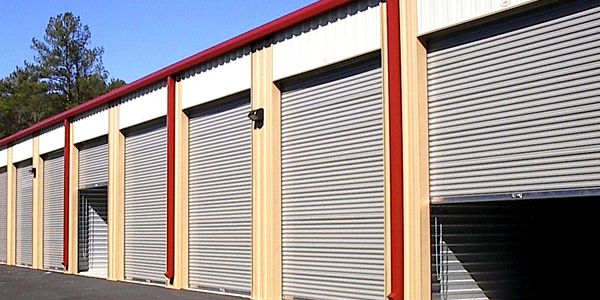

The 2000 Series is the perfect roll-up door for light-duty applications that require frequent use.
Features
Curtain
- 26-gauge galvanized, Grade E hard steel
- 5/8″ ribbed corrugation
- Maximum opening size of 12′ x 18′
- Siliconized polyester WeatherXL™ paint over prime coat
- Available in 23 colors, subject to availability and varying lead times
- 30-year film integrity warranty, up to 25-year chalk and fade warranty
Bottom Bar
- 6063-T6 aluminum extrusion
- 2” x 1 ½” galvanized angles
- Bulb astragal
- Stainless steel nuts and bolts
- Axle-Drum Assembly
- 1 5/16” O.D. steel axle, 14-gauge
- 11-gauge axle on doors over 10’ wide
- Utilizes 12”, 16-gauge drums
- Shielded steel ball bearings in drums
- Full top sheet
A.C.E. (Advanced Curtain Engagement) guide system
- 16-gauge galvanized steel
- Adjustable bolt on head stop
- Polyethylene wear strip
- Pre-punched for lock and attachment fasteners
- Hardware
- Saddle clamps with set fasteners
- 10-gauge slide locks; 2 per door
- 16-gauge step plate; 2 per door
- ¼” steel angle T-bracket
Opening Height Headroom
- Doors up to 10’ have 20” of headroom
- Doors 10’ to 14’ have 22” of headroom
- Doors over 14’ have 24” of headroom
Options
- Insulation 2250 Series
- 1900 Series – low overhead option
- Chain hoist 4:1 reduction
- Vision panels (17” x 5”)
- Hood
- Steel mounting plates
- Motor operated
NOTE: The 2000 Series is not rated for wind loads. Please see the 2500, 3000 or 5000 Series.
