Ridge & Endlap Back-Up Plate – CFR

Gauge Width Length Finish
16 1 3/8″ 4″ Galvanized
  • Use: Back-up Plates are inserted between the foam and the exterior skin during manufacturing to provide additional fastener support at each Mesa.
  • Ridge: To support the ridge fasteners, the plate is inserted in end.
  • Endlap: If there is an endlap, the back-up plate is also inserted at end to support the endlap fastener.
  • Field Applied: If the customer must cut the panels to accommodate a Hip Roof or if the customer is not sure of the panel lengths and plans to field cut the roof panels, the back-up plates must be field-installed.
  • Quantity: (1) at each High Mesa. (4″ o.c.)

Use with panels less than 8′ when field cut from longer lengths

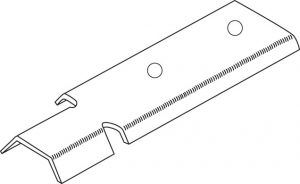

Ridge & Endlap Back-Up Plate – Insulated BattenLok

Gauge Width Length Finish
16 1 3/8″ 4″ Galvanized
