Clips

Components>Accessories>Insulated Metal Panel Accessories>Clips

Wall Panel Clip

Gauge Finish Length
14 Galvanized 4″
14 Stainless Steel 4″
Clip is used to attach the back side of a panel to a structural beam

Girt/Beam Clip

Gauge Finish DIM “A”
10 Galvanized 1/4″
10 Stainless Steel 1/4″
10 Galvanized 3/8″
10 Stainless Steel 3/8″
10 Galvanized 1/2″
10 Stainless Steel 1/2″
The clip fits into the panel female groove and attaches the liner panel to within 1/8″ of the wall

Liner Clip

Gauge Finish Length
16 Galvanized 3″
16 Stainless Steel 3″

Cee Clip

Gauge Finish Length
16 Galvanized 2 3/4″

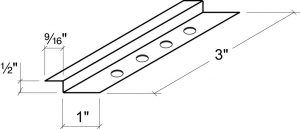

Zee Clip

Gauge Finish Length
16 Galvanized 3″
16 Stainless Steel 3″
Used at wall base starting course of Horizontal Panels to attach panel to substrate

J Clip

Gauge Finish Length
16 Galvanized 3″
16 Stainless Steel 3″
Requires Clip Butyl Sealant Tape to be field installed on each clip

Insulated BattenLok® Roof Panel Clip\ CFR Roof Panel Clip

Gauge (Base/Tab) Finish Panel Thickness
12 Ga. / 20 Ga. Galvanized 2″
12 Ga. / 20 Ga. Galvanized 2 1/2″
12 Ga. / 20 Ga. Galvanized 3″
12 Ga. / 20 Ga. Galvanized 4″
12 Ga. / 20 Ga. Galvanized 5″
12 Ga. / 20 Ga. Galvanized 6″

Ceiling Clip

Gauge Length Finish
14 8″ Galvanized
