Components>Accessories>Insulated Metal Panel Accessories>Insulated BattenLok and CFR Fasteners
(2) fasteners per roof clip.
Factory Mutual Requirements: (3) fasteners per roof clip when attached to support members less than 12 gauge
Use in 16 gauge – 12 gauge steel
This Fastener can be purchased in any quantity – Increments of 250 are not required
Clip Fastener
| Head Size | Type | Carton Size |
| 5/16″ | Driller | 750 |
This Fastener can be purchased in any quantity – Increments of 250 are not required.
Use: Optional fastener to #1616 and #1724 series.
Pilot Hole: The proper sizing of the pilot holes drilled in different gauge steel is critical for self tapping screws
Limitations: 1/16″to 1/2″ thick
Clip Fastener
| Head Size | Type | Carton Size |
| 3/8″ | B | 1000 |
This Fastener can be purchased in any quantity – Increments of 250 are not required.
Stainless: Stainless is provided based on customer requirements, primarily when the panels will be installed in a corrosive environment (coastal location, exposure to chemicals, etc.).
Pilot Hole: The proper sizing of the pilot holes drilled in different gauge steel is critical for self tapping screws
Limitations: 1/16″to 1/2″ thick
Clip Fastener
| Head Size | Type | Carton Size |
| 3/8″ | B | 1000 |
This Fastener can be purchased in any quantity – Increments of 250 are not required
Thru-Panel fasteners with washers are used to attach the panels to the supports from the exterior face. The washer provides a seal where the fastener penetrates the panel, and they are typically placed at the low point of the mesa pattern.

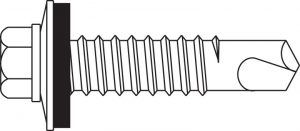

CFR Rake Through Panel Fastener
Through Panel Fastener
| Length “A” | Head Size | Panel Thickness | Carton Size |
|---|---|---|---|
| 3″ | 3/8″ | 2″ | 500 |
| 4″ | 3/8″ | 2 1/2″ & 3″ | 300 |
| 5″ | 3/8″ | 4″ | 300 |
| 6″ | 3/8″ | 5″ | 250 |
| 9″ | 3/8″ | 6″ | 200 |
This Fastener can be purchased in any quantity – Increments of 250 are not required
Thru-Panel fasteners with washers are used to attach the panels to the supports from the exterior face. The washer provides a seal where the fastener penetrates the panel, and they are typically placed at the low point of the mesa pattern.
CFR Rake Through Panel Fastener
Through Panel Fastener
| Length “A” | Head Size | Panel Thickness | Carton Size |
|---|---|---|---|
| 4″ | 3/8″ | 2″ | 500 |
| 5″ | 3/8″ | 2 1/2″ & 3″ | 300 |
| 6″ | 3/8″ | 4″ | 250 |
| 7″ | 3/8″ | 5″ | 250 |
| 8″ | 3/8″ | 6″ | 200 |
Fasteners sold in quantities of 250 only
Fastener is used at the ridge and high eave closures
Outside Closure Fastener
| Head Size | Material | Carton Size |
| 5/16″ | Carbon Steel | 2,500 |
