Components>Accessories>Standing Seam Roof Accessories>Clips
Clip fasteners must be ordered separately

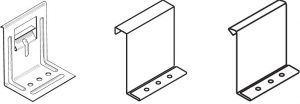

Clip – Low Fixed
| SSR System | Height |
|---|---|
| Ultra-Dek® | 3 3/8″ |
| BattenLok® HS | 2 3/8″ |
| SuperLok® | 2 3/8″ |
Clip fasteners must be ordered separately
Clip – High Fixed
| SSR System | Height |
|---|---|
| Ultra-Dek® | 4 3/8″ |
| BattenLok® HS | 3″ |
| SuperLok® | 3″ |
Clip fasteners must be ordered separately
Clip – Utility
| SSR System | Height |
|---|---|
| Ultra-Dek® | 3″ |
| BattenLok® HS | 2″ |
Clip fasteners must be ordered separately
Recommended for use when clip is attached directly to bar joist

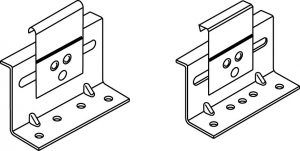

Clip – Low Floating
| SSR System | Height |
|---|---|
| BattenLok® HS | 2 3/8″ |
| SuperLok® | 2 3/8″ |
Clip fasteners must be ordered separately
Recommended for use when clip is attached directly to bar joist
Clip – High Floating
| SSR System | Height |
|---|---|
| BattenLok® HS | 3″ |
| SuperLok® | 3″ |
Clip fasteners must be ordered separately
1 3/8″ movement in each direction

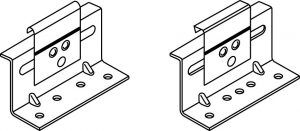

Clip – 2″ Sliding (Low)
| SSR System | Height |
|---|---|
| Ultra-Dek® | 3 3/8″ |
| Double-Lok® | 3 3/8″ |
Clip fasteners must be ordered separately
1 3/8″ movement in each direction
Clip – 2″ Sliding (High)
| SSR System | Height |
|---|---|
| Ultra-Dek® | 4 3/8″ |
| Double-Lok® | 4 3/8″ |
Clip fasteners must be ordered separately
2″ movement in each direction
Clip – 4″ Sliding
| SSR System | Height |
|---|---|
| Double-Lok® | 3 3/8″ (Low) |
| Double-Lok® | 4 3/8″ (High) |
Clip fasteners must be ordered separately
1 3/8″ movement in each direction
Clip – 2″ Standoff, Sliding (Hi-Thermal)
| SSR System | Height |
|---|---|
| Double-Lok® | 5″ |
