Components>Trim>Architectural Trim>Head or Jamb Trim
MasterLine 16™ Head Trim
| Length | Girth |
|---|---|
| 3′-6″ | 6 1/8″ |
| 10′-4″ | 6 1/8″ |
| 14′-4″ | 6 1/8″ |
MasterLine 16™ Jamb/Sill Case
| Length | Girth |
|---|---|
| 10′-2″ | 6″ |
MasterLine 16™ Two Piece Jamb Trim
| DIM “A” | Sheathing Thickness | Length | Girth |
|---|---|---|---|
| 1 1/2″ | 1/2″ | 10′-2″ | 4 7/8″ |
| 1 3/4″ | 3/4″ | 10′-2″ | 5 1/8″ |
| 2″ | 1″ | 10′-2″ | 5 3/8″ |
| 2 1/2″ | 1 1/2″ | 10′-2″ | 5 7/8″ |
| 3″ | 2″ | 10′-2″ | 6 3/8″ |

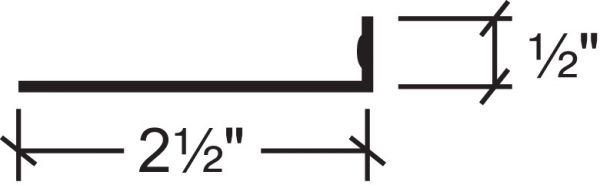

MasterLine 16™ Door Jamb Cleat
| Length | Girth |
|---|---|
| 10′-2″ | 3″ |
ShadowRib™ Head Trim
| Length | Girth |
|---|---|
| 10′-2″ | 7 7/8″ |
| 20′-2″ | 7 7/8″ |
ShadowRib™ Head Trim-Alternate
| Length | Girth |
|---|---|
| 10′-2″ | 11 3/4″ |
| 20′-2″ | 11 3/4″ |
ShadowRib™ Cap/Jamb Trim
| Length | Girth | DIM “A” |
|---|---|---|
| 10′-2″ | 8 1/8″ | 3 1/8″ |
| 20′-2″ | 8 1/8″ | 3 1/8″ |
| 10′-2″ | 6 1/2″ | 1 1/2″ |
| 20′-2″ | 6 1/2″ | 1 1/2″ |

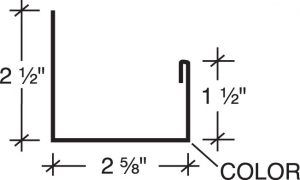

NuWall® New Construction Head/Jamb Trim
| Length | Girth |
|---|---|
| 10′-6″ | 7 1/8″ |
| 14′-6″ | 7 1/8″ |
| 16′-6″ | 7 1/8″ |
NuWall® Retrofit Head/Jamb Trim
| Length | Girth |
|---|---|
| 10′-6″ | 5 1/8″ |
| 14′-6″ | 5 1/8″ |
| 16′-6″ | 5 1/8″ |
NuWall® New Construction Head Trim
| Length | Girth |
|---|---|
| 3′-6″ | 8 1/8″ |
| 10′-6″ | 8 1/8″ |
| 14′-6″ | 8 1/8″ |
| 16′-6″ | 8 1/8″ |
Designer™ Series Two Piece Jamb Trim
| Length | Girth |
|---|---|
| 10′-2″ | 6″ |

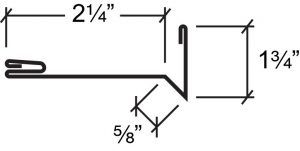

Designer™ Series Two Piece Head Trim
| Length | Girth |
|---|---|
| 10′-2″ | 6 3/8″ |

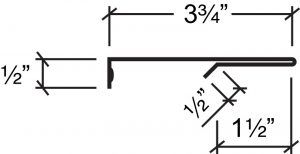

Designer™ Series Head/Jamb Cleat
| Length | Girth |
|---|---|
| 10′-2″ | 6 1/4″ |
