Eave Trim

Components>Trim>Insulated Metal Panel Trim>Eave Trim

Specify roof slope
Specify left or right
Trim is 26 gauge and smooth as standard
Use with Sculptured Rake
Trim available in 8′-0″, 10′-0″, 12′-0″, 14′-0″, 16′-0″ and 20′-0″ lengths

Sculptured High Side Eave

DIM “A” DIM “B” Roof Thickness Wall Thickness Girth
13 1/2″ 4″ 1 1/2″ – 4″ 4″ – 6″ 26 5/8″
11″ 5 1/4″ 5″ – 6″ 1 1/2″ – 3″ 26 5/8″
11″ 4″ 1 1/2″ – 4″ 1 1/2″ – 3″ 24 1/8″
13 1/2″ 5 1/4″ 5″ – 6″ 4″ – 6″ 29 1/8″
Use with LS-36™ Roof Panel
Trim is smooth as standard
Trim available in 8′-0″, 10′-0″, 12′-0″, 14′-0″, 16′-0″ and 20′-0″ lengths

Low Eave Trim

DIM “A” Roof Thickness Girth Gauge
7 7/8″ 1 1/2″, 2″, 2 /2″, 3″ and 4″ 13 1/2″ 26
10 3/8″ 5″ and 6″ 16″ 26
Specify trim as smooth or embossed – 24 gauge material
Trim available in 8′-0″, 10′-0″, 12′-0″, 14′-0″, 16′-0″ and 20′-0″ lengths

High Eave Trim

DIM “A” Roof Thickness Girth
3 1/2″ 2″ – 3″ 17 1/16″
5 1/2″ 4″ – 5″ 19 1/16″
6 1/2″ 6″ 20 1/16″
Use with Insulated BattenLok® Roof Panel
Specify trim as smooth or embossed – 24 gauge material
Trim available in 8′-0″, 10′-0″, 12′-0″, 14′-0″, 16′-0″ and 20′-0″ lengths

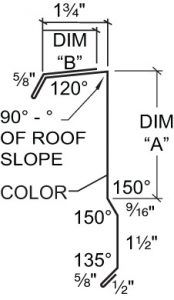

Low Eave Trim

DIM “A” DIM “B” Girth Roof Thickness Roof Slope
4 1/8″ 1 1/4″ 11 9/16″ 2″ – 3″ 1/2 – 2:12
4 3/8″ 1″ 11 9/16″ 2″ – 3″ 3 – 4:12
6 3/16″ 1 3/16″ 13 9/16″ 4″ – 5″ 1/2 – 2:12
6 1/2″ 7/8″ 13 9/16″ 4″ – 5″ 3 – 4:12
7 3/16″ 1 3/16″ 14 9/16″ 6″ 1/2 – 2:12
7 1/2″ 7/8″ 14 9/16″ 6″ 3 – 4:12
