Gutters

Components>Trim>Standing Seam Roof Trim>Gutters

Use with Ultra-Dek® and Double-Lok® roof systems only
Use in installations where panel caps are used
Specify roof slope
Specify left or right

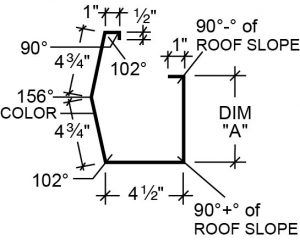

Sculptured Gutter – Standard

DIM “A” Length Girth Roof Slope
6 5/16″ 10′-2″ 23 13/16″ 1/4-4:12
6 5/16″ 20′-2″ 23 13/16″ 1/4-4:12
6 15/16″ 10′-2″ 24 7/16″ 4 1/16-6:12
6 15/16″ 20′-2″ 24 7/16″ 4 1/16-6:12
Use with Ultra-Dek® and Double-Lok® roof systems only
Use in installations where panel caps are used
Specify roof slope
Specify left or right

Sculptured Gutter – Optional

Length Girth Roof Slope
10′-2″ 24″ 1/4-4:12
20′-2″ 24″ 1/4-4:12
Use with BattenLok® HS and SuperLok® roof systems only
Use in installations where panel caps are used
Specify roof slope
Specify left or right

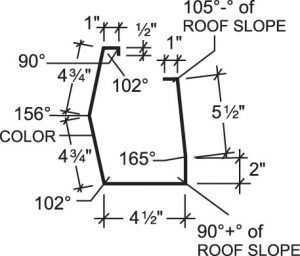

Sculptured Gutter – Standard

DIM “A” Length Girth Roof Slope
7 5/16″ 10′-2″ 23 13/16″ 1/4-4:12
7 5/16″ 20′-2″ 23 13/16″ 1/4-4:12
7 15/16″ 10′-2″ 24 7/16″ 4 1/16-6:12
7 15/16″ 20′-2″ 24 7/16″ 4 1/16-6:12
Use with BattenLok® HS and SuperLok® roof systems only
Use in installations where panel caps are used
Specify roof slope
Specify left or right

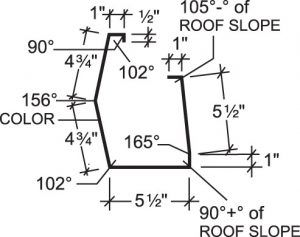

Sculptured Gutter – Optional

Length Girth Roof Slope
10′-2″ 24″ 1/2-4:12
20′-2″ 24″ 1/2-4:12
Use with BattenLok® HS and SuperLok® roof systems
24 gauge material
Specify roof slope or angle indicated on drawing
Snow Gutter available – Please inquire

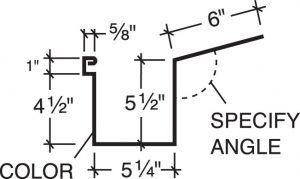

Box Gutter

Length Girth
10′-2″ 24″
20′-2″ 24″
Use with Gutter Hanger

BattenLok® HS – Alternate SLX Gutter- Box

Length Girth
10′-2″ 22 1/4″
Use with Gutter Hanger

BattenLok® HS – Alternate SLX Gutter- Standard

Length Girth
10′-2″ 21 1/2″
Use with Gutter Hanger

BattenLok® HS – Alternate SLX Gutter- SW Large

Length Girth
10′-2″ 28 3/8″
Use with Gutter Hanger

BattenLok® HS – Alternate SLX Gutter- Snow Large

Length Girth
10′-2″ 26 1/8″
