Ridge or Peak Trim

Components>Trim>Standing Seam Roof Trim>Ridge or Peak Trim

Use without ventilator

Ridge Flashing – Floating

DIM “A” Length Girth Roof Slope
3 1/2″ 10′-2″ 15 1/2″ 1/4-2 1/2:12
4 1/2″ 10′-2″ 17 1/2″ 2 9/16-4:12
6 1/2″ 10′-2″ 21 1/2″ 1/4-2 1/2:12
7 1/2″ 10′-2″ 23 1/2″ 2 9/16-4:12
Use with 9″ Continuous Ventilator only

Ridge Flashing – Floating

DIM “A” Length Girth Roof Slope
10 1/4″ 10′-2″ 29″ 1/4-2 1/2:12
11″ 10′-2″ 30 1/2″ 2 9/16-4:12
Specify roof slope
Use with BattenLok HS and SuperLok only
Use without vent material
Specify use as ridge or hip

Ridge/Hip Flashing – Fixed

DIM “A” Length Girth Roof Slope
6″ 10′-2″ 13″ 1/2-3 3/4:12
7″ 10′-2″ 15″ 3 13/16-6:12
11 1/2″ 10′-2″ 24″ 1/2-3 3/4:12
Specify roof slope
Use with Perforated Vent Drip

Ridge Flashing

DIM “A” Length Girth Roof Slope
4 1/2″ 10′-2″ 19 1/2″ 1/2-3 3/4:12
5 1/2″ 10′-2″ 21 1/2″ 3 13/16-6:12
7 1/2″ 10′-2″ 25 1/2″ 1/2-3 3/4:12
8 1/2″ 10′-2″ 27 1/2″ 3 13/16-6:12
Specify roof slope
Use with BattenLok HS and SuperLok only
Use with Metal Vent Material

Ridge Flashing For Metal Vent

DIM “A” Length Girth Roof Slope
5 1/2″ 10′-2″ 22 1/4″ 1/2-3:12
6″ 10′-2″ 23 1/4″ 3 1/16-5:12
8 1/2″ 10′-2″ 28 1/4″ 1/2-3:12
9″ 10′-2″ 29 1/4″ 3 1/16-5:12
Specify roof slope
Use with BattenLok HS and SuperLok only
Use with metal vent material

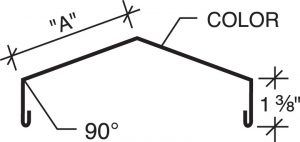

Ridge Flash Metal Vent – Fixed

DIM “A” Length Girth Roof Slope
8 7/8″ 10′-2″ 21 1/2″ 1/2-3:12
9 1/2″ 10′-2″ 22 3/4″ 3 1/16-5:12
11 7/8″ 10′-2″ 27 1/2″ 1/2-3:12
12 1/2″ 10′-2″ 28 3/4″ 3 1/16-5:12
18 gauge material

BattenLok® HS – Alternate Ridge Channel

Length Girth
10′-0″ 7 1/4″
Specify roof slope

BattenLok® HS – Alternate SLX Ridge Trim

DIM “A” Length Girth Roof Slope
7 3/8″ 10′-2″ 20″ 1/2-1:12
7 5/8″ 10′-2″ 20 1/2″ 1 1/16-2:12
8″ 10′-2″ 21 1/4″ 2 1/16-3:12
8 1/4″ 10′-2″ 21 3/4″ 3 1/16-4:12
