Product Information
The CF Architectural – Horizontal Series, formerly known as eco-FICIENT® Grand H, allows designers to mix multiple panel widths and colors on the same wall. It also allows flexibility for continuous corners along with a complete line of aluminum extrusions and accessories to complete the wall system. When desired, these panels can also be mixed with vertical or horizontal insulated panels to achieve almost any look a design requires.
Features

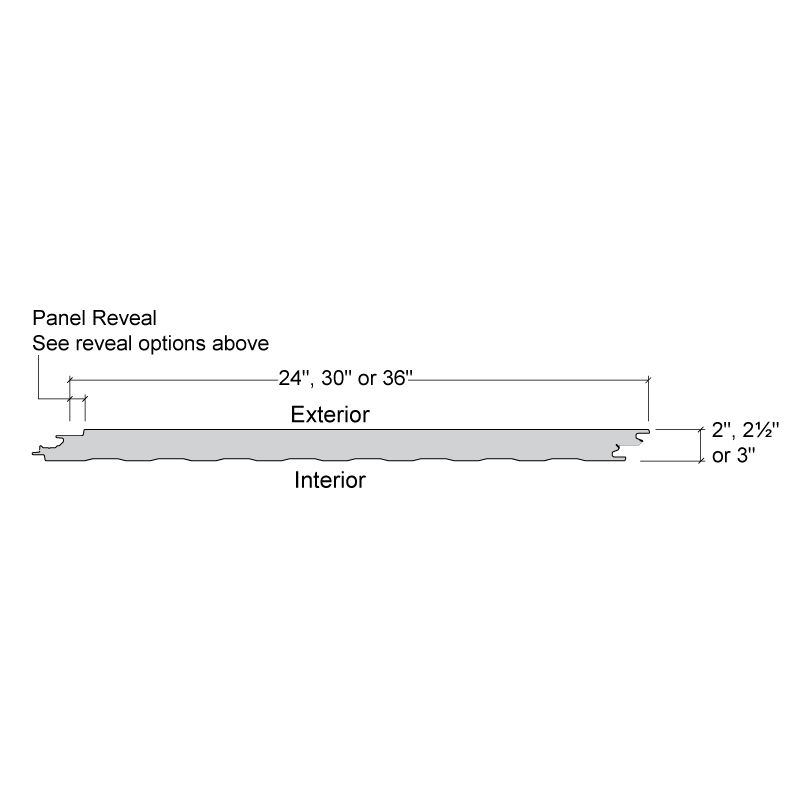

- Width – 24″, 30″, 36″
- Panel Attachments – Concealed Fastening System
- Exterior Gauges – 22
- Interior Gauges – 26 (standard); 24, 22 (optional)
- Exterior Finishes – Stucco-embossed
- Interior Finishes – Stucco-embossed, Light Mesa Profile
- Exterior Coatings – Signature ® 300, Applied Finishes
- Interior Coatings – Igloo White (standard)
- Thickness – 2″, 2 1/2″, 3″, 4″
- Lengths – 8′-0″ to 32′-0″ for embossed; 8′-0″ to 16′-0″ for unembossed
- Reveal – Up to 1″ reveal options in 1/4″ increments or up to 3″ reveal options in 1/2″ increments
- Orientation – Vertical or Horizontal
