690 Series

Components>Roll-up Doors>690 Series

Product Information

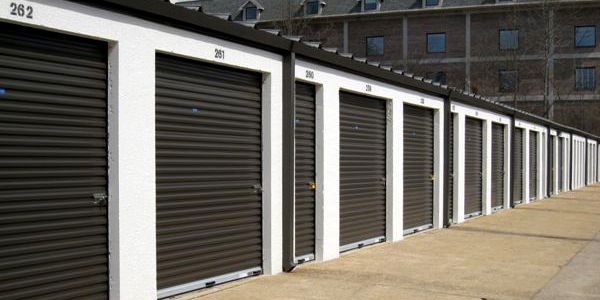

The 690 Series steel-curtain roll-up door is designed to operate smoothly and perform well in severe weather. They won’t buckle, bow, become misaligned from the tracks or separate from the door frame during strong storms and wind events.



  • 26-gauge galvanized, Grade E hard steel
  • 5/8″ ribbed corrugation
  • Maximum opening size of 10′ x 10′
  • Siliconized polyester WeatherXL™ paint over prime coat
  • Available in 23 colors, subject to availability and varying lead times
  • 30-year film integrity warranty, up to 25-year chalk and fade warranty

Bottom Bar

  • 6063 – T6 aluminum extrusion
  • 1 ½” x 1 ½” galvanized angles
  • Replaceable bulb astragal
  • Axle-Drum Assembly
  • 1 5/16” O.D. steel axle, 14-gauge
  • Utilizes 9 ½”, 18-gauge drums
  • Oil tempered e-coated torsion springs, available in two springs upon request from 7’ to 10’ wide
  • Fully accessible springs for inspection and maintenance

Guide System

  • 16-gauge galvanized steel guides and windbar
  • Pre-punched holes for anchors, slide latch, bracket attachment and head stop attachment
  • Polyethylene guide strips provide easy, quiet operation


  • Stainless steel standard latch
  • 12-gauge head stops have slotted mounting holes for proper attachment
  • 14-gauge galvanized steel handles
  • 12-gauge tension bracket made for additional strength
  • Shielded radial bearings for smooth operation
  • Worm gear tensioning design allows for smooth adjustment
  • 12-gauge bearing bracket on right side


  • Insulated 691 Series
  • Top and side draft stop
  • ADA kits

NOTE: The 690 Series is wind rated up to 10′ wide.
