Craftsman™ Series – High Batten

Components>Roof>Concealed Fastening Roof Systems>Craftsman™ Series & High Batten

Product Information

The Craftsman™ Series is a water-shedding system and can be used for roofs and mansard only when installed over a water-proofed solid substructure with a minimum roof slope of 3:12. The Craftsman™ Series design makes complicated building transitions simple without the necessity of flashings. Slope changes from roof to fascia to soffit can be made with one continuous pan and batten. A concealed clip securely locks the batten to the panel while allowing for expansion and contraction.

Features

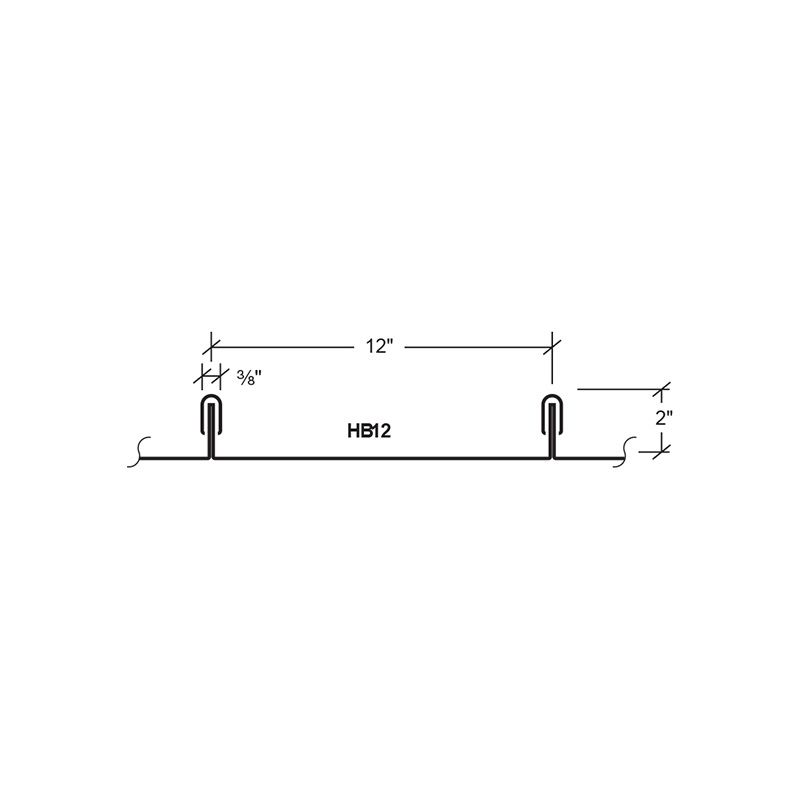

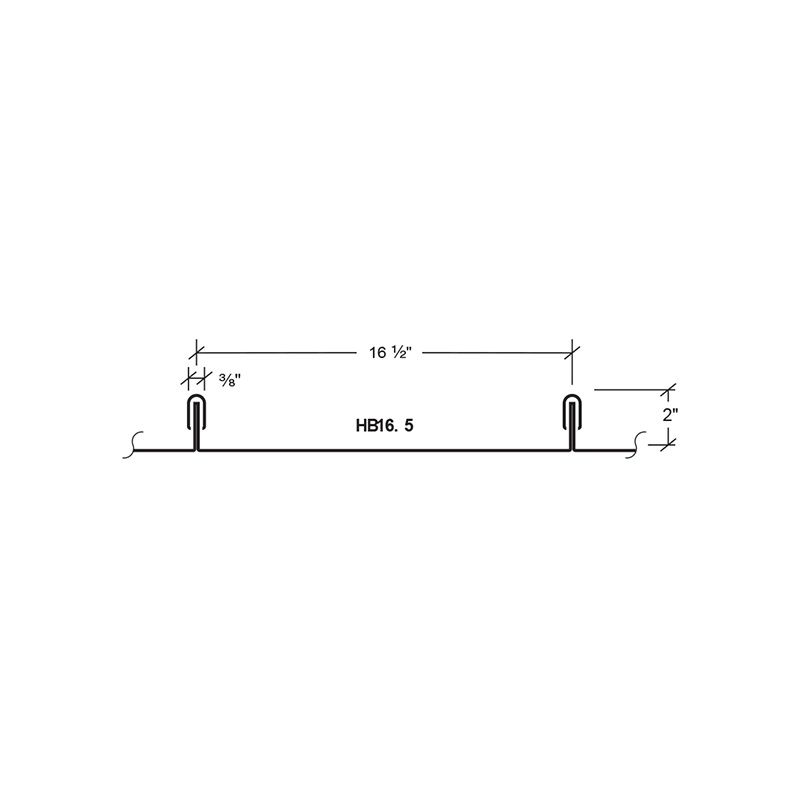

  • Coverage Width – 12″, 16 1/2″
  • Minimum Slope – 3:12
  • Panel Attachment – Concealed Fastening System
  • Gauge – 24 (standard); 26, 22 (optional)
  • Finishes – Smooth (standard); Embossed (optional)
  • Coatings – Galvalume Plus®, Signature® 200, Signature® 300, Signature® 300 Metallic
