Product Information

QwikLok™ provides the basic design element for any type of canopy cover. Easy-to-trim flush surfaces make transitions to conventional material simple without major concern for creating special conditions. Direct the flow of water to any desired drainage point by combining QwikLok™ with the fascia/gutter. Canopies, walkway covers and soffits are all in the QwikLok™ design arena. High-gloss finish, immense water carrying capacity and long span characteristics make QwikLok™ today’s most popular choice for any underside application. One-step fastened requires only one side of the panel to be attached to the structure. The adjoining panel is snap-locked to the first panel, concealing the fastener from view and providing a secure, flush appearance. This proven fastened method creates a positive interlock between panels. Install QwikLok™ over a variety of substructures such as light-gauge framing, purlins, structural steel and joists.

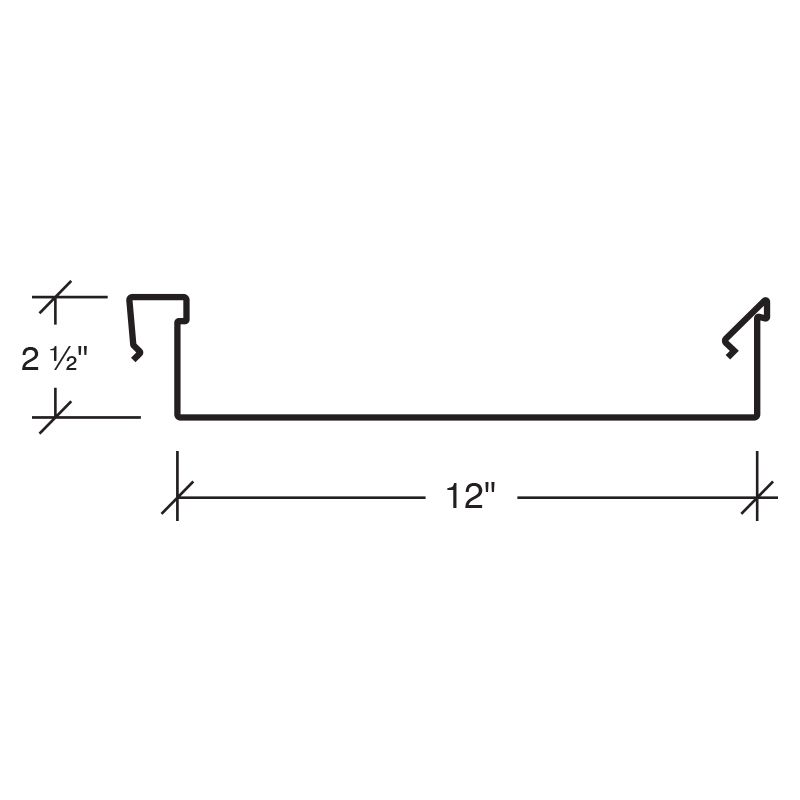

  • Coverage Width – 12″
  • Panel Attachment – Concealed Fastening System
  • Gauge – 24
  • Finishes – Smooth (standard); Embossed (optional)
  • Coatings – High Gloss White
