Components>Trim>Standing Seam Roof Trim>Eave Trim
![](https://g29364.p3cdn1.secureserver.net/wp-content/uploads/2019/10/MBCI-Trim-SSR-UDDLSCULPTUREDEAVETRIM-e1572270306755.jpg)
Specify open hem when using with Continuous Cleat
Sculptured Eave Trim
Length | Girth |
10′-2″ | 14 1/4″ |
20′-2″ | 14 1/4″ |
![](https://g29364.p3cdn1.secureserver.net/wp-content/uploads/2019/10/MBCI-Trim-SSR-BLSLSCULPTUREDEAVETRIM-e1572270287619.jpg)
Specify open hem when using with Continuous Cleat
Sculptured Eave Trim
Length | Girth |
10′-2″ | 15 1/4″ |
20′-2″ | 15 1/4″ |
![](https://g29364.p3cdn1.secureserver.net/wp-content/uploads/2019/10/Retro-Fit-HighEaveTrim-FL-863-e1572270327568.jpg)
Specify left or right
Retro-Fit High Eave Trim
Length | Girth |
10′-2″ | 22 7/8″ |
![](https://g29364.p3cdn1.secureserver.net/wp-content/uploads/2019/10/SSR-SCULPTUREDHIGHSIDEEAB4-e1572270361134.jpg)
Specify open hem when using with Continuous Cleat
Specify left or right
Sculptured High Side Eave Trim
DIM “A” | Length | Girth | Roof Slope |
---|---|---|---|
2″ | 10′-2″ | 20 3/8″ | 1/4-1 3/4:12 |
3 11/16″ | 10′-2″ | 22 1/16″ | 1 13/16-4:12 |
![](https://g29364.p3cdn1.secureserver.net/wp-content/uploads/2019/10/MBCI-Trim-H-S-EAVE-TRIM-8-F_SSR3-e1572270272365.jpg)
Specify roof slope
Specify left or right
Style High Side Eave Trim
Length | Girth |
10′-2″ | 18 3/4″ |
20′-2″ | 18 3/4″ |
![](https://g29364.p3cdn1.secureserver.net/wp-content/uploads/2019/10/MBCI-Trim-FLAT-EAVE-TRIM-e1572270229904.jpg)
Flat Eave Trim
Length | Girth |
10′-2″ | 11 3/8″ |
![](https://g29364.p3cdn1.secureserver.net/wp-content/uploads/2019/10/MBCI-Trim-BAT-BOX-EAVE-TRIM-e1572268267447.jpg)
Specify roof slope or angle indicated on drawing
Specify open hem when using with Continuous Cleat
Box Eave Trim
Length | Girth |
10′-2″ | 8 5/8″ |
20′-2″ | 8 5/8″ |
![](https://g29364.p3cdn1.secureserver.net/wp-content/uploads/2019/10/MBCI-Trim-BAT-BOX-H-_-S-EAVE-TRIM-e1572268944438.jpg)

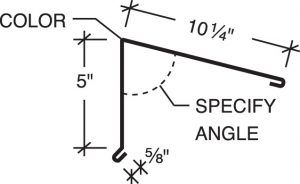

Specify roof slope or angle indicated on drawing
Specify open hem when using with Continuous Cleat
Box High Side Eave Trim
Length | Girth |
10′-2″ | 16 7/8″ |
20′-2″ | 16 7/8″ |
![](https://g29364.p3cdn1.secureserver.net/wp-content/uploads/2019/10/MBCI-Trim-BattenLokHSSLX_7EaveSupport-e1572269158791.jpg)
Specify roof slope
Use with fixed eave attachment
BattenLok® HS – SLX-7 Eave Support
Length | Girth |
10′-0″ | 16 11/16″ |
![](https://g29364.p3cdn1.secureserver.net/wp-content/uploads/2019/10/MBCI-Trim-BattenLokHSSLX_7EaveTrim-e1572270202322.jpg)
Specify roof slope
BattenLok® HS – Alternate SLX-7 Eave Trim
Length | Girth |
10′-2″ | 10 1/2″ |
